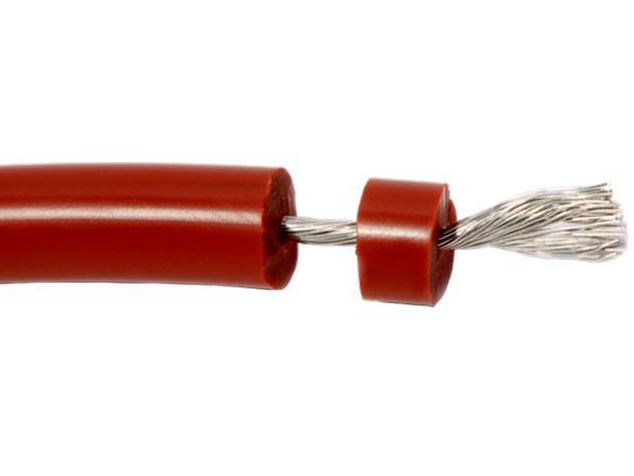

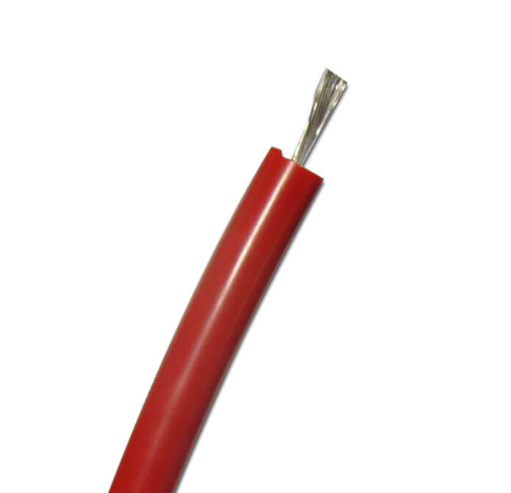

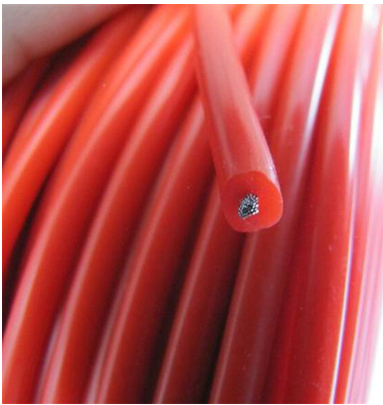

硅橡膠電纜AGG-10KV-6mm2
型 號：AGG-AC
執行標準：企業標準
產品特性：
1、額定電壓:交流1KV、3KV、6KV、 10KV、35KV
2、工作溫度：-60～+200℃

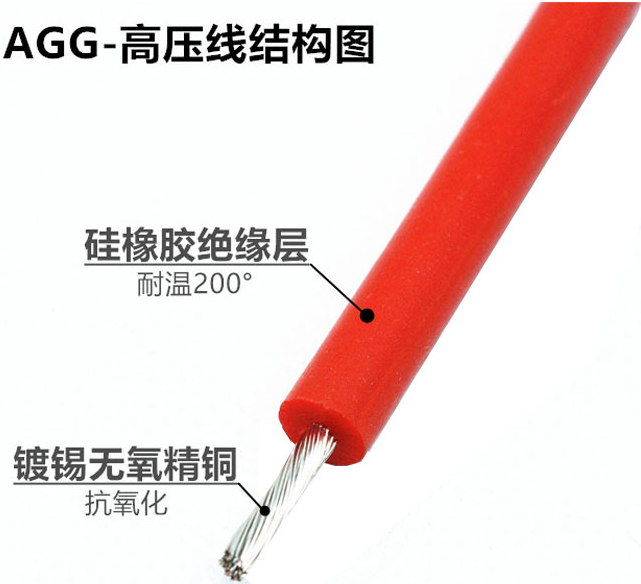

3、導 體：絞合鍍錫銅線
4、J 緣：硅橡膠
5、顏 色：紅/黃/蘭/白/黑/黃綠/棕等
硅橡膠電纜AGG-10KV-6mm2特點/用途：
硅橡膠電纜AGG-10KV-6mm2具有優良的高溫耐低溫性能，具有優良的電J緣性能，優良的化學穩定性能，耐高電壓，耐老化，使用壽命長。且柔軟便于安裝,硅橡膠電纜AGG-AC廣泛應用于照明燈具、家用電器、電熱電器、儀表儀器、電機引接線及電子、燈具、燃具等高溫環境。交貨要求：
按雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
規格結構及技術參數：
|
電壓等J KV |
導體標稱截面 mm 2 |
導體結構 |
平均外徑 mm |
20 ℃ 時導體電阻大值 Ω /km |
包裝長度 （ m ） |
|
根數 / 單線直徑 |
|||||
|
1KV |
0.50 |
16/0.20 |
3.30 |
40.1 |
100 |
|
0.75 |
24/0.20 |
3.60 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
3.70 |
20.0 |
100 |
|
|
1.50 |
48/0.20 |
4.00 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
4.30 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
4.40 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
5.60 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
6.60 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
7.80 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
9.00 |
1.24 |
100 |
|
|
25.0. |
196/0.40 |
11.20 |
0.795 |
100 |
|
|
35.0 |
494/0.30 |
12.80 |
0.565 |
100 |
|
|
50.0 |
396/0.40 |
15.0 |
0.393 |
100 |
|
|
70.0 |
551/0.40 |
17.20 |
0.277 |
100 |
|
|
95.0 |
760/0.40 |
19.80 |
0.210 |
100 |
|
|
120.0 |
608/0.50 |
21.50 |
0.164 |
100 |
|
|
150.0 |
760/0.50 |
23.40 |
0.132 |
100 |
|
|
185.0 |
925/0.50 |
25.20 |
0.108 |
100 |
|
3KV |
0.50 |
16/0.20 |
4.90 |
40.1 |
100 |
|
0.75 |
24/0.20 |
5.20 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
5.30 |
20.0 |
100 |
|
|
1.50 |
48/0.20 |
6.00 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
6.25 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
6.80 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
7.60 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
8.80 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
9.80 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
11.40 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
13.20 |
0.795 |
100 |
|
6KV |
0.50 |
16/0.20 |
5.90 |
40.1 |
100 |
|
0.75 |
24/0.20 |
6.20 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
6.30 |
20.0 |
100 |
|
|
1.50 |
48/0.20 |
7.20 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
7.50 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
8.00 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
8.80 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
10.0 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
11.0 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
12.80 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
14.60 |
0.795 |
100 |
|
|
10KV |
0.30 |
7/0.26 |
9.00 |
71.2 |
100 |
|
0.50 |
16/0.20 |
9.00 |
40.1 |
100 |
|
|
0.75 |
24/0.20 |
9.00 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
9.00 |
20.0 |
100 |
|
|
1.50 |
30/0.25 |
9.00 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
10.0 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
10.0 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
10.0 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
11.0 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
12.0 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
13.80 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
15.60 |
0.795 |
100 |
|
|
35KV |
4.00 |
56/0.30 |
18.0 |
5.09 |
100 |
|
6.00 |
84/0.30 |
18.0 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
19.0 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
20.0 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
21.0 |
0.795 |
100 |
|
|
35.0 |
494/0.30 |
23.0 |
0.565 |
100 |
|
|
50.0 |
396/0.40 |
25.0 |
0.393 |
100 |
|
|
70.0 |
551/0.40 |
27.0 |
0.277 |
100 |
|
|
95.0 |
760/0.40 |
29.0 |
0.210 |
100 |
